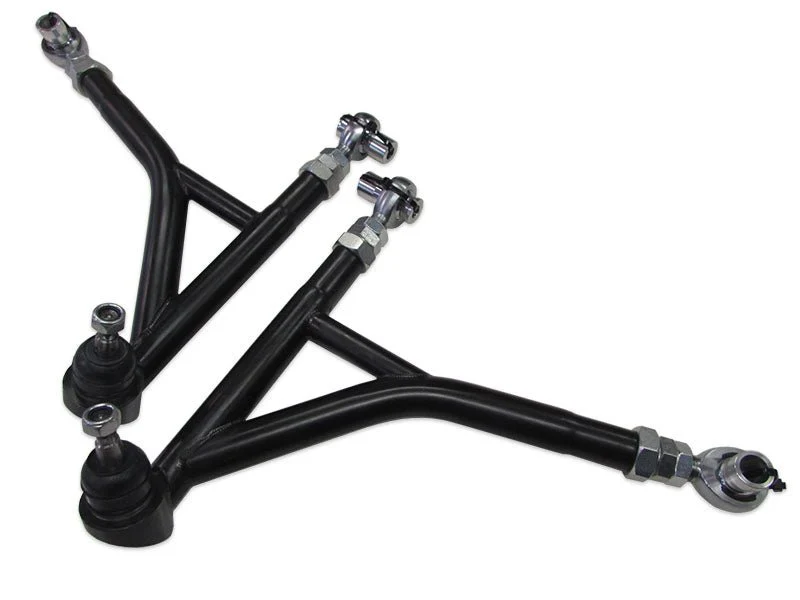

Product image 1
Product image 2

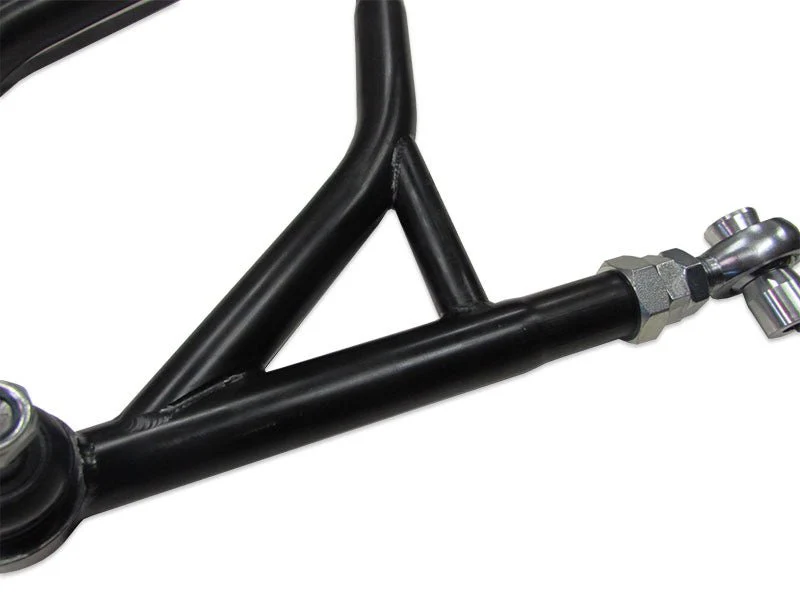

Product image 3

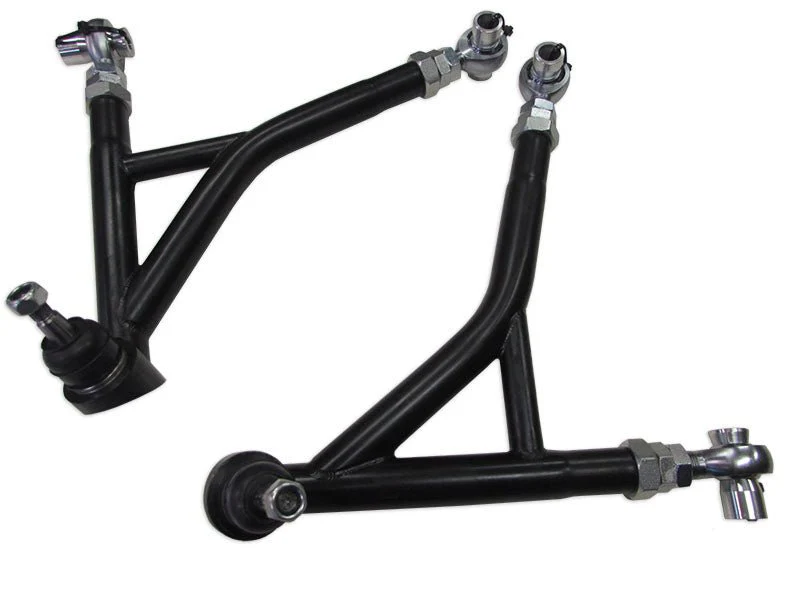

Product image 4

Racer X Fabrication Front Lower Control Arms 13-24 BRZ / 13-16 FRS / 17-21 GT86 / 22-24 GR86

The Racer X Fabrication front lower control arms were designed to reduce weight and increase rigidity. The OEM front lower control arms have been known to bend and flex under load. The Racer X control arms eliminate this by using light weight 4130 Chromoly tubing and chromoly rod ends. The control arms were designed in CAD from the OEM model to match and follow the small angle that is located at the rear of the control arm. The arms allow for on vehicle adjustment of camber and caster and are zinc plated black for corrosion resistance.

Installation Note:

Racer X Fabrication is not responsible for damage to control arms from ball joints being installed incorrectly. Ball joint installation / removal requires specialized tooling, please make sure your installer / service center is properly equipped to handle this process.Not for use with extended ball joints.

What's Included

  • (2) Front lower 4130 chromoly control arms
  • (4) 1"-12 Bung nut adjuster
  • (4) 1"-12 RH jam nut
  • (4) 3/4"-16 LH rod end
  • (4) 3/4"-16 LH jam nut
  • (8) Aluminum bushings
Select Ball Joing Option
From $297.15

Original: $849.00

-65%
Racer X Fabrication Front Lower Control Arms 13-24 BRZ / 13-16 FRS / 17-21 GT86 / 22-24 GR86—

$849.00

$297.15

Product Information

Shipping & Returns

Description

The Racer X Fabrication front lower control arms were designed to reduce weight and increase rigidity. The OEM front lower control arms have been known to bend and flex under load. The Racer X control arms eliminate this by using light weight 4130 Chromoly tubing and chromoly rod ends. The control arms were designed in CAD from the OEM model to match and follow the small angle that is located at the rear of the control arm. The arms allow for on vehicle adjustment of camber and caster and are zinc plated black for corrosion resistance.

Installation Note:

Racer X Fabrication is not responsible for damage to control arms from ball joints being installed incorrectly. Ball joint installation / removal requires specialized tooling, please make sure your installer / service center is properly equipped to handle this process.Not for use with extended ball joints.

What's Included

  • (2) Front lower 4130 chromoly control arms
  • (4) 1"-12 Bung nut adjuster
  • (4) 1"-12 RH jam nut
  • (4) 3/4"-16 LH rod end
  • (4) 3/4"-16 LH jam nut
  • (8) Aluminum bushings
